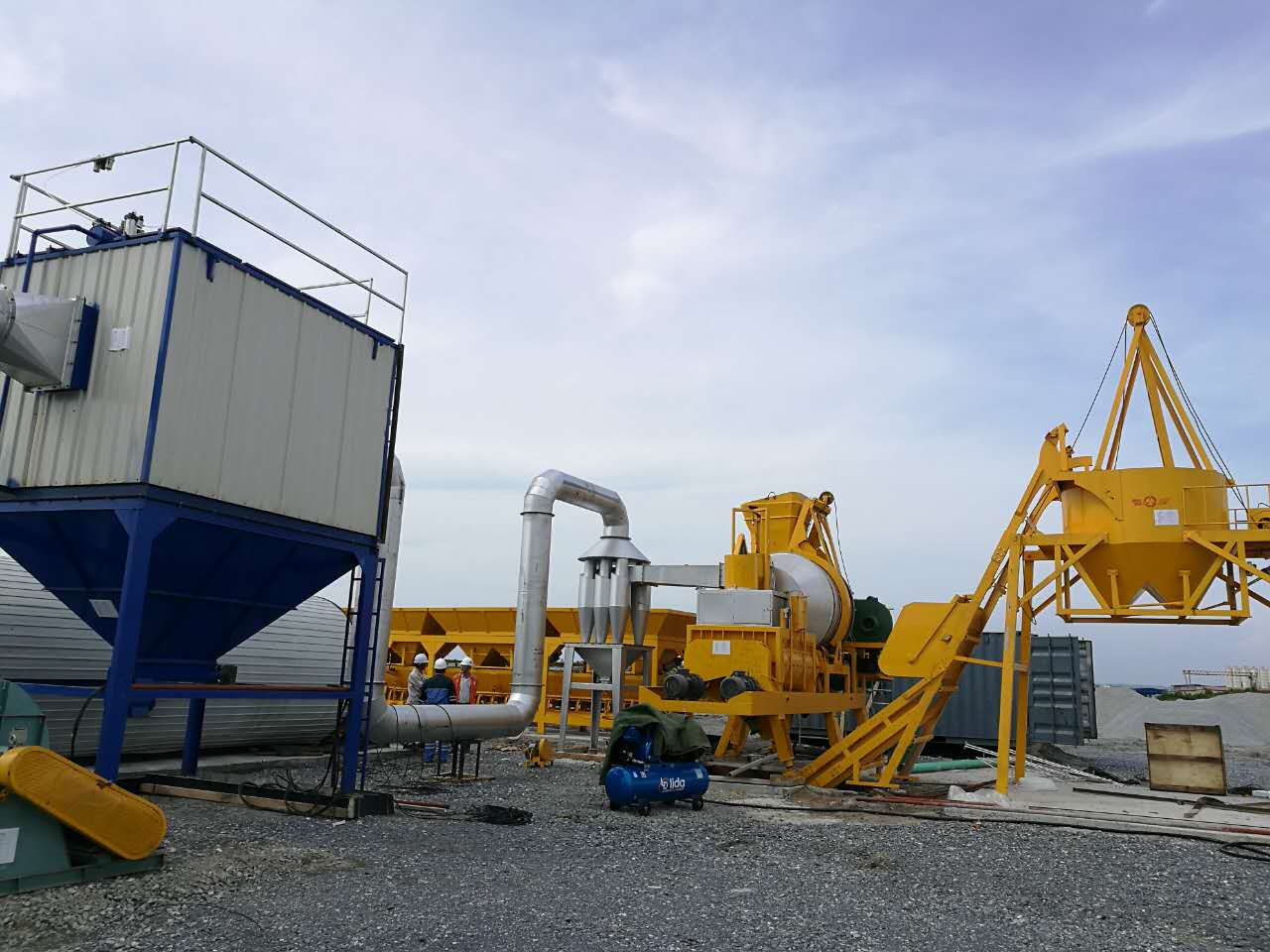

LQY强制移动式沥青搅拌站 Mobile Forced Asphalt Mixing Plant

产品中心product > 强制移动式沥青搅拌站Forced mobile asphalt mixing plant > LQY强制移动式沥青搅拌站 Mobile Forced Asphalt Mixing Plant

LQY强制移动式沥青搅拌站 Mobile Forced Asphalt Mixing Plant

    • 1
    • 2

移动强制式LQY系列特点：

1. 间歇式烘干滚筒和双卧轴搅拌缸整体设计，搅拌更彻底，成品料质量更好。

2. 正转烘干，反转出料，整机结构简单，易于操作。

3. PLC可编程集中控制，触摸屏操作，自动手动切换自如。

4. 移动式的底盘结构。令运输与安装快捷、方便；

5. 燃煤燃油两用型燃烧炉，可根据用户需要选择。



型号 model

LQY-10

LQY-15

LQYB-20

LQY-30

LQY-40

LQY-60

LQY-80

生产能力 capacity

10t/h

15t/h

20t/h

30t/h

40t/h

60t/h

80t/h

整机功率
Total power

燃油 diesel

41.5 kW

54 kW

63.5 kW

104.5 kW

125 kW

157.5 kW

200kW

燃煤 coal

57.5 kW

75 kW

86.5 kW

127.5 kW

169 kW

205 kW

276 kW

配料站 AG batcher

2.3m³x3

23 m³.x3

2.3 m³×3

5 m³×3

5 m³×3

5 m³×3

5 m³×4

成品料仓
Asphalt stoarge hopper

5t

5t

5t

9t

9t

9t

20t

出料温度 Product Temp

120～180℃，可调整

燃料消耗 fuel comsuption

燃油/Oil ：5～7.5 ㎏/t 燃煤/Coal ：13～15 ㎏/t

Features of the mobile forced LQY series:

1.The intermittent drying drum and the twin-shaft mixer cylinder are designed as an integrated whole, ensuring more thorough mixing and better quality of the finished product.
2. It dries in the forward rotation and discharges materials in the reverse rotation. The whole machine has a simple structure and is easy to operate.
3. PLC programmable centralized control, touch screen operation, and easy switching between automatic and manual modes.
4. Mobile chassis structure. Facilitates quick and convenient transportation and installation.
5. Dual-fuel combustion furnaces that can use both coal and oil are available upon customer request.
